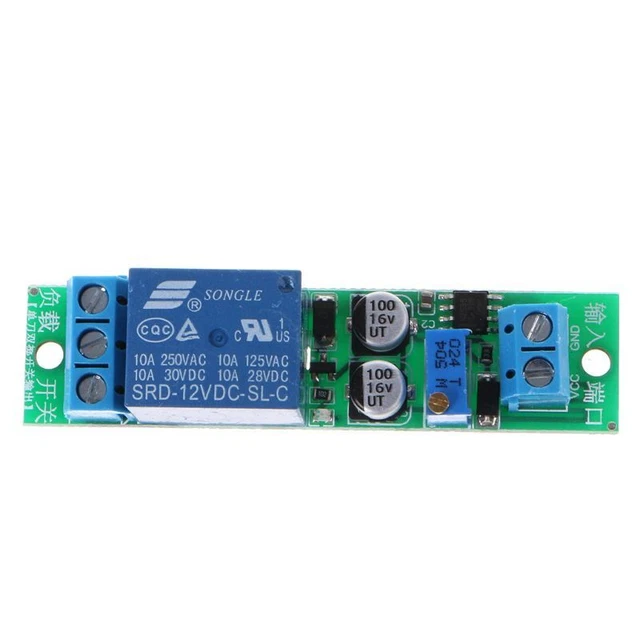

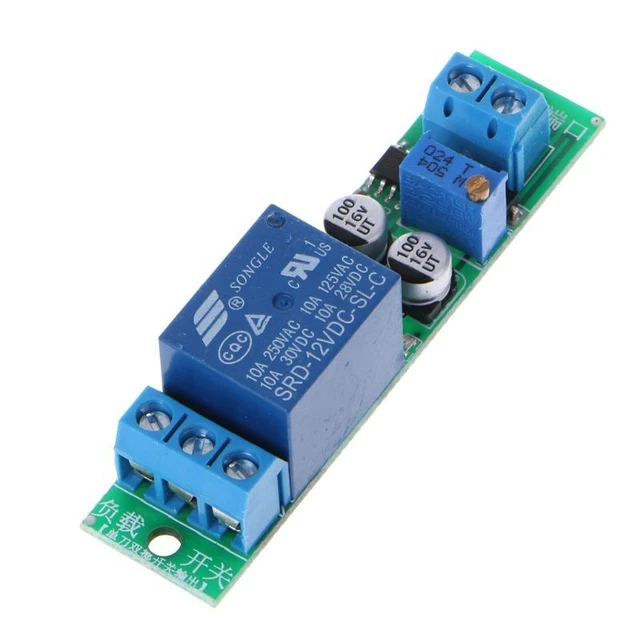

  5. for 12V Signal Delay Turn Delay Timer Switch Module 0-25s

for 12V Signal Delay Turn Delay Timer Switch Module 0-25s 1 of 3FREE Shipping — Only 4 leftfor 12V Signal Delay Turn Delay Timer Switch Module 0-25s 2 2 of 3for 12V Signal Delay Turn Delay Timer Switch Module 0-25s 3 3 of 3 See More
See Details on eBay available at Amazon

for 12V Signal Delay Turn Delay Timer Switch Module 0-25s

$14.13 Buy It Now, FREE Shipping, 30-Day Returns, eBay Money Back Guarantee
Seller: hx15_15 ✉️ (369) 97.2%, Location: Sydney, AU, Ships to: WORLDWIDE, Item: 404636061808 for 12V Signal Delay Turn Delay Timer Switch Module 0-25s. 12V delay normally open module, repeatedly triggering effective. If there is for signal, will keep energized until signal disappears, then dis-energized after 0 to 25 seconds. Load Capacity: AC 250V 10A; for 30V 10A. for 12V Signal Delay Turn Delay Timer Switch Module 0-25s Features: 12V delay normally open module, repeatedly triggering effective. Delay for time can be adjusted by potentiometer(clockwise to reduce, anticlockwise to increase), default 0-25 seconds, if you need more for time, simply replace a larger capacitance or potentiometer. Power supply terminal has anti-reverse diode for protection. signal can be high level or low level signals, suitable for industrial control, the module can be triggered repeatedly. It can be used in robotics, car lamp delay, intelligent product development, automation equipment, PLC development, intelligent home, burglar alarm delay, and development of electronic. Working Principle: 1. Power on the module (12V or 5V) and is energized immediately. N.O. terminal is connected to COM terminal. 2. is dis-energized after 0 to 25 seconds. N.C. terminal is connected to COM terminal. 3. keeps dis-energized until there is an external signal. 4. If there is for signal, will keep energized until signal disappears, then dis-energized after 0 to 25 seconds. Now N.C. terminal is connected to COM terminal. Specifications: Operating Voltage: for 12V Load Capacity: AC 250V 10A; for 30V 10A Delay Time: for T(S)=1.1xR(Ω)xC(f); e.g. if capacitor is 47uf, resistor is 500KΩ, T=1.1x0.000047x500000=25.85sec. Size: 6.7x1.1mm/2.64x0.43" Quantity: 1 Pc Note: Please allow 0-1mm error due to manual measurement. pls make sure you do not mind before you bid Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! No Retail Package Package Contents: 1 x Timer Module
  • Condition: Brand New
  • Brand: Unbranded
  • Country/Region of Manufacture: China

PicClick Insights - for 12V Signal Delay Turn Delay Timer Switch Module 0-25s PicClick Exclusive

  •  Popularity - 0 watchers, 0.0 new watchers per day, 19 days for sale on eBay. 0 sold, 4 available.
  •  Best Price -
  •  Seller - 369+ items sold. 2.8% negative feedback. Good seller with good positive feedback and good amount of ratings.
