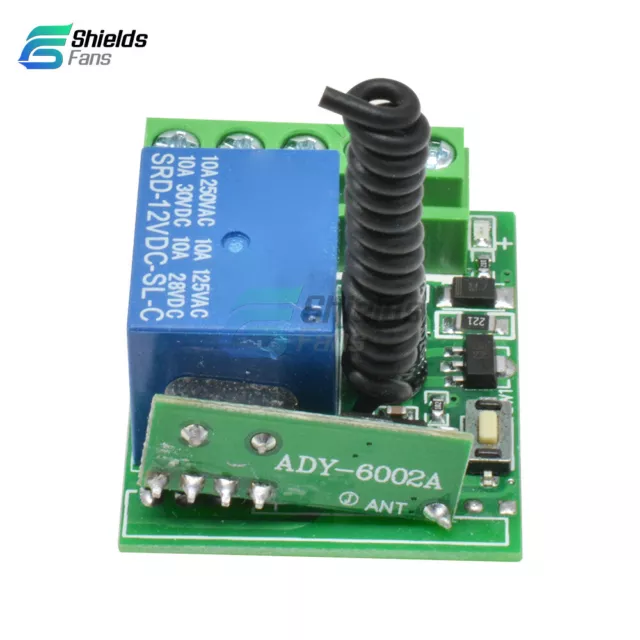

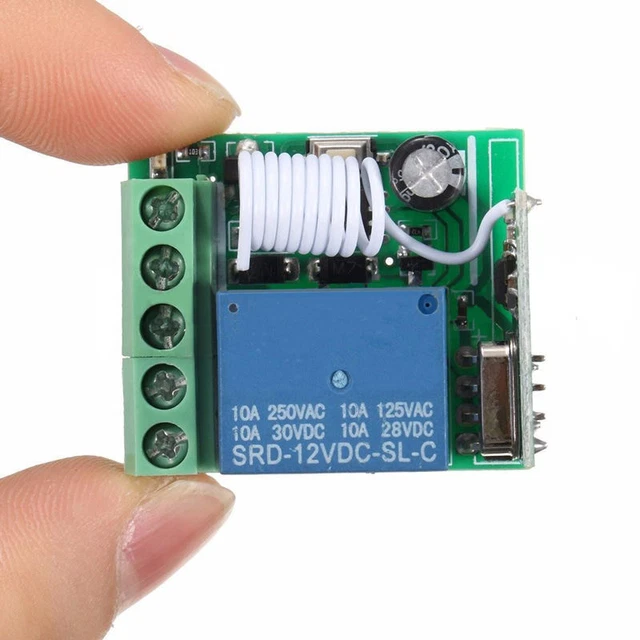

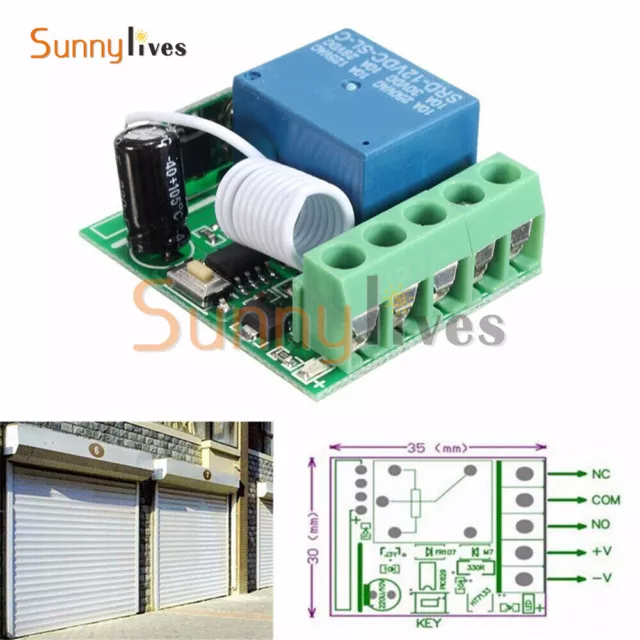

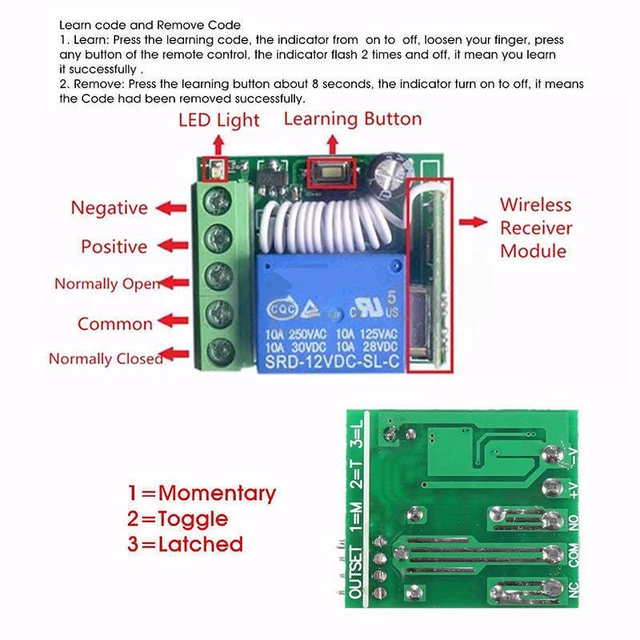

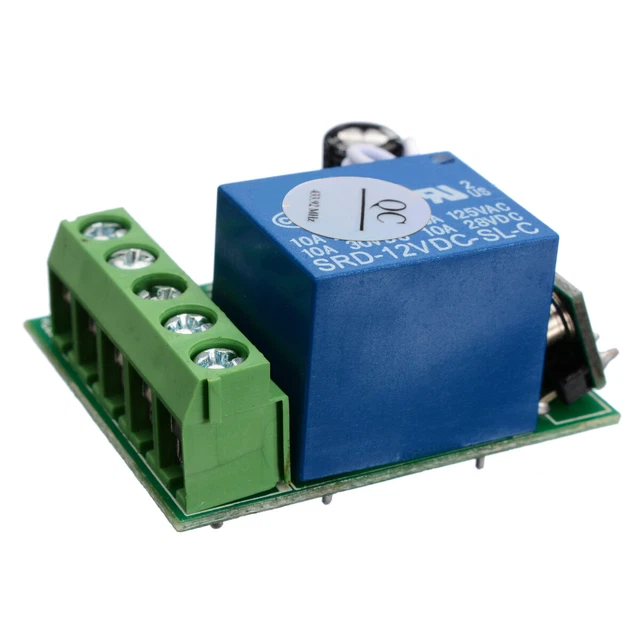

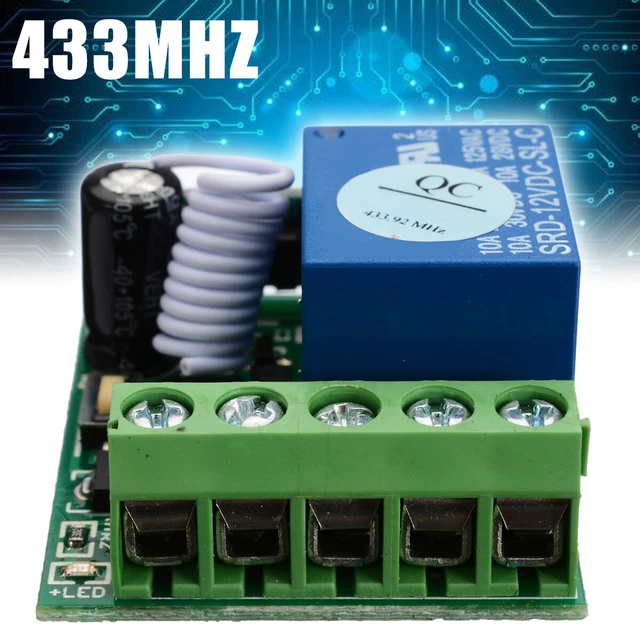

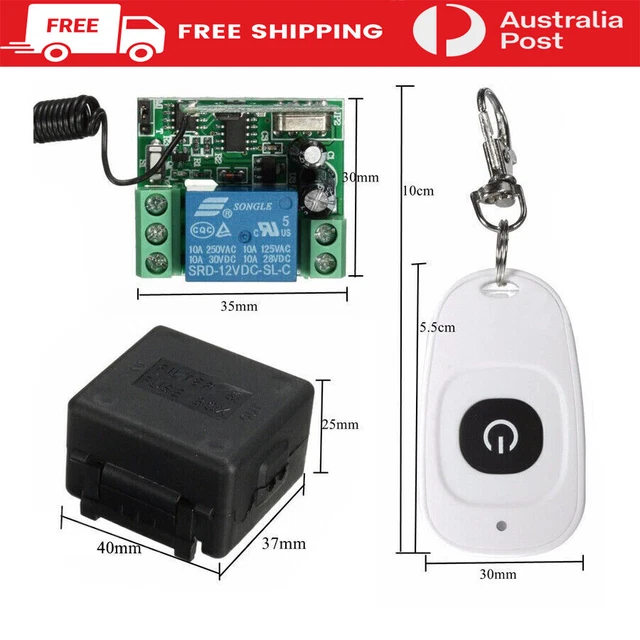

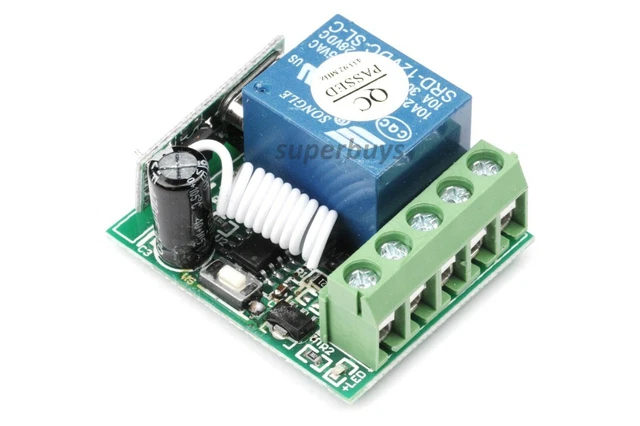

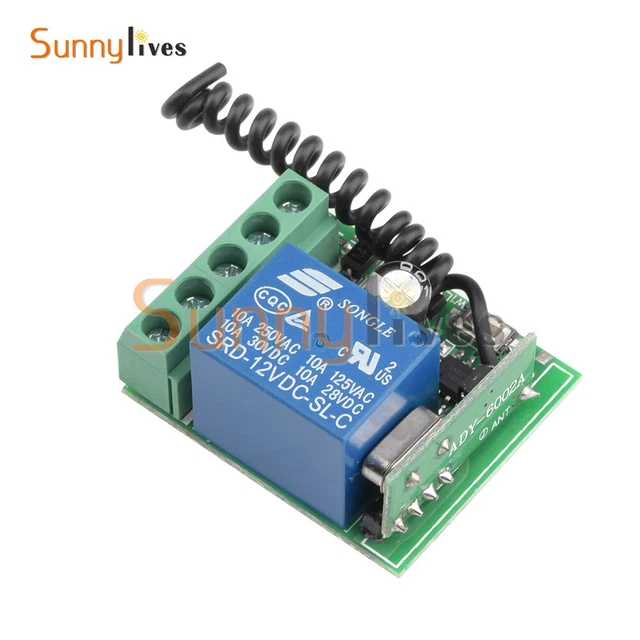

Item:36459092741310A 1 Channel Receiver Wireless Relay RF Remote Control Switch DIY Module L. Press the learning code. 10A 30VDC / 10A 28VDC. Jog/Non-Latched: Press one button is Working /ON. Rated load:10A 250VAC / 10A 125VAC. Output Current: 10A. RF Working mode:Super heterodyne receiver. Description Features: 1. Press the learning code .the indicator flash ,loosen your finger ,press any button of the remote control the indicator flash 2 times and off .it mean you learn it successfully . 2. It can learn 2272 2262 or 1527 chip with the different code wireless 433MHz remote control 3. Remove/clean :press the learning button about 8 seconds , the indicator turn on to off, it means the information that you keep have been removed successfully . Specification: 1.Input Voltage: DC10-14V 2.Standby Current: ＜5MA 3.RF Frequency: 433MHZ 4.RF Working mode:Super heterodyne receiver 5.Receiver Sensitivity: >90dBm 6.Remote Control Distance: >100 meter(In open environment) 7.Decoding Way: MCU Software decoding 8.Can store the number of remote control:50 9.Support remote control type: Fixed code, learning code 10.Channel: 1CH 11.Multiple working modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched,Delay off) 12.Wiring Method:Fixed wiring terminal 13.Working Voltage: DC12V 14.Output Current: 10A 15.Rated load:10A 250VAC / 10A 125VAC 10A 30VDC / 10A 28VDC 16.Output:Normally open,Common,Normally closed 17.Dimension:3.5cm*3cm*1.6cm Working/output way: 1.Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control. 2.Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control. 3.Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control. 4.Delay: Press remote control 's one button,relay is working,release the remote control and begin timekeeping,after 5s,10s,15s will automatically close the relay Package Included: 1 x 12V 1 Channel Wireless Relay Switch Note: The size is just for reference, there maybe exist a measurement error, please check carefully before you buy it. Color may vary slightly due to different calibration of each monitor. Detail Image Payment 1. Payment is needed to receive within 7 days after deal.if not we will close the transaction. 2. We only accept PayPal. 3. PayPal is the only online payment method we accept. Please make sure you have a valid/confirmed PayPal account prior bidding. And please make sure that your PayPal registed address is the same with your eBay registed address. Customs Declaration: Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to biddingying. DHL can not reach to few remote areas in your country,if you choose Express and living remote areas. You should pay the additional shipping charge. If your area belongs to remote areas, the parcel can't reach, or you need to pay more freight, our customer service will contact you. If you need to add the tracking number, be sure to contact customer service before making orders especial for the people comes from the country of Eastern Europe, the Middle East and South American. It needs to pay the extra shipping cost! Order can not be shipping to any P.O boxes. Order can only be shipped to physical addresses.
package included:        1 x 12V 1 Channel Wireless R
